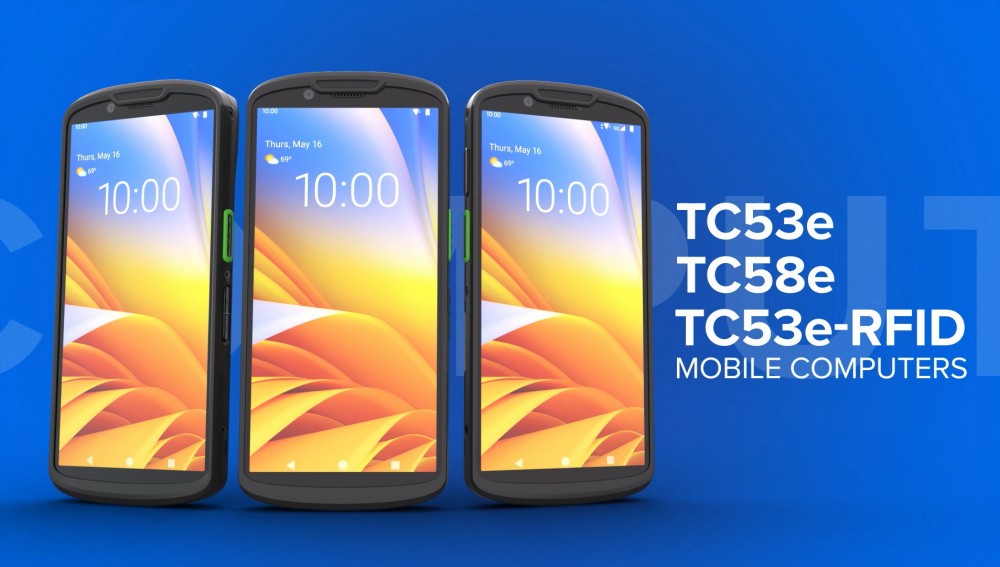

Zebra TC53e/TC53e-RFID/TC58e
Wi-Fi 6E, 5G지원, UHF-RFID, Android Mobile Computer
기존의 최다 판매량을 자랑했던 Zebra TC5 시리즈의, 최신 대체 모델 TC53e, TC53e-RFID 및 TC58e을 소개합니다.
모델별 주요 특징
✔ TC53e : Wi-Fi 전용 모델로, 창고, 소매점, 제조 시설 등 실내 환경에 최적화된 모바일 컴퓨터입니다. (대체품 TC52, TC52x, TC52ax)
✔ TC53e-RFID : TC53e의 모든 기능에 추가로 단거리 UHF RFID 리더 기능이 내장되어 있습니다.
✔ TC58e : Wi-Fi와 5G 셀룰러 통신을 모두 지원하여 실외 작업이 많은 현장 서비스, 물류, 배송 업무에 이상적입니다. (대체품 TC57, TC57x)
공통적 주요 특징
✔ 성능 : Qualcomm 4490 Kryo 옥타 코어, 2.4GHz 탑재, 이전 세대보다 약 두배 정도의 빠른 처리속도와 적은 전력 소비를 자랑합니다
✔ 메모리 : 6GB RAM/64GB UFS 플래시, 8GB RAM/64GB UFS 플래시, 8GB RAM/128GB UFS 플래시 제공합니다.
✔ 확장슬롯 : 최대 2TB의 온보드 스토리지를 지원하여 멀티태스킹과 대용량 애플리케이션 사용에 적합합니다.
✔ 통신 : 5G, Wi-Fi 6E, Bluetooth 5.3 등 최신 기술을 지원하여 빠르고 안정적인 연결을 제공합니다.
✔ 디스플레이 : 6인치 FHD+, 1080x 2160, LED 백라이트, 600 NITS, 젖은 손이나 장갑을 낀 상태에서도 터치 조작이 가능합니다.
✔ 내구성 : 방진, 방수, 낙하 방지 및 텀블 방지 기능을 갖추어 거친 산업 환경에서도 안정적으로 작동합니다.
✔ 보안 : 전용 보안 칩(Secure Element)이 탑재되어 중요 데이터에 대한 무단 접근을 방지하는 최고 수준의 물리적 보안을 제공합니다.
✔ 친환경성 : 25%의 재활용 플라스틱으로 제작되었으며, 수은과 같은 주요 환경 유해 물질이 포함되지 않아 지속 가능한 제품입니다.
시장 및 적용 분야
매장 직원
- 가격/재고 확인
- 주문 풀필먼트(BOPIS/BOPAC)
- 품목 로케이터
- 계산대기열 단축/모바일 POS
- 판매 보조
- 작업 관리
- 고객 응대 공간 보충
- 가격 관리
- 재고/사이클 카운트
매장 관리자
- 인력 관리
- 상품진열 관리
- 프로모션 규정 준수
- 판촉
- 고객 비응대 공간 관리
현장 서비스 기술자
- 자산 관리
- 부품 재고
- 청구/모바일 POS
- 일정 계획
우체부/택배 기사
- 배달/상태 증명
- 자산 관리
- 청구/모바일 POS
- 위치 추적 서비스
PHYSICAL CHARACTERISTICS
Dimensions : 6.48 in. L x 3.04 in. W x 0.66 in. H / (164.8mm L x 77.35mm W x 16.75mm H)
Weight : 9.9 oz (282g) with standard battery
Display : 6.0 in. Full High Definition+; 1080x 2160; LED back-light; 600 NITS; optically bonded to touch panel
Imager Window : Corning® Gorilla® Glass
Touch Panel : Multi-mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately), Corning Gorilla Glass; water droplet rejection; fingerprint resistant anti-smudge coating
Backlight : LED
Power : Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; Standard capacity: 4680 mAh (18.01 Watt hours); Extended capacity: 7000 mAh (26.95 Watt hours); BLE battery: 4680 mAh; Qi compatible Wireless charge battery: 4680 mAh; fast charging; Warm Swap battery mode
Expansion Slot : User accessible MicroSD card supports up to 2 TB
SIM : TC58e only: 1 nano SIM; 1 eSIM
Network Connections : WLAN, WPAN (Bluetooth), USB 2.0 (Back I/O - Host Only), USB 3.1 superspeed (Bottom Type C) - Super Speed (Host and Client); TC58e only: WWAN 5G
Notifications : Audible tone; multi-color LEDs; haptic feedback
Keypad : On-screen keypad and enterprise keyboard
Voice and Audio : Built-in microphones for AI noise suppression and stereo record; vibrate alert; Dual speakers for loudness; Bluetooth wireless headset support; PTT headset (Zebra USB-C) support; High quality stereophonic speaker phone; Cellular Circuit Switch voice; HD voice; VoLTE EVS; VoIP incl. SWB Audio
Buttons : Programmable buttons for maximum flexibility: dual dedicated scan buttons, dedicated push-to-talk button, volume up/down buttons and trigger button of trigger handle via Back I/O.
Interface Ports : USB 2.0 (Back I/O - Host Only), USB 3.1 superspeed (Bottom Type C) - Super Speed (Host and Client)
PERFORMANCE CHARACTERISTICS
CPU : Qualcomm 4490 Kryo octa-core, 2.4 GHz
Operating System : Android; for supported Android versions, visit: www.zebra.com/android-versions
Memory : 6GB RAM/64GB UFS Flash; 8GB RAM/64GB UFS Flash; 8GB RAM/128GB UFS Flash
Security : FIPS 140-2 Validated (ISO 19790) and Common Criteria certified (ISO 15408); Supports Secure Boot and Verified Boot
USER ENVIRONMENT
Operating Temp. : -4F to +122F (-20C to +50C)
Storage Temp. : -40F to +158F (-40C to +70C)
Humidity : 5% to 95% non-condensing
Sealing : IP68 and IP65 with battery per applicable IEC sealing specifications
Tumble Specification : 1000 1.6 ft (0.5m) tumbles at room temperature without protective boot, meets or exceeds IEC tumble specification; 1000 3.2 ft (1.0m) tumbles at room temperature with protective boot, meets or exceeds IEC tumble specification
Drop Specifications ;
- Exceeds per MIL-STD-810H : 8 ft (2.4m) to concrete with the boot; 6 ft (1.8m) to tile over concrete stand-alone terminal; 6 ft (1.8m) to concrete with the boot across temperature (+14F to +122F/-10C to +50C) exceeding MIL-STD-810H; 5 ft (1.5m) to tile over concrete across temperature (+14F to +122F /-10C to +50C) exceeding MIL-STD-810H
Electrostatic Discharge (ESD) : +/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge
GENERAL CERTIFICATIONS
FIPS 140-2 ISO 19790; Common Criteria; NFC Forum Certification; Android Enterprise Recommended (AER)
INTERFACE SENSOR TECHNOLORY (IST, 대화형 센서 기술)
Light sensor, magnetometer, motion sensor, pressure sensor (TC58e only), proximity sensor and gyro
DATA CAPTURE
Scanning : SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4720 1D/2D Scan Engine; SE4770 1D/2D scan engine (TC58e only)
Camera : Front-8 MP; Rear-16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard)
NFC : NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support - Front Tap NFC for optimized contactless payment, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK, Secure Element* for enhanced Apple/Google VAS secure key management
* Selected SKUs
Integrated RFID : Short range integrated UHF RFID; 4 ft (1.2m) range; reads 20 tags per second; EU 865-868MHz and US 902-928Mhz (TC53e-RFID only)
WIRELESS PAN
Bluetooth : Class 1 and Class 2, Bluetooth v5.3; secondary Bluetooth Low Energy (BLE) for beaconing within BLE battery
WIRELESS LAN
Radio : IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO; Wi-Fi 6E (801.11ax); Wi-Fi certified; Wi-Fi 6E Certified; Dual Band Simultaneous; IPv4, IPv6
Data Rates ;
- 5GHz : 802.11a/n/ac/ax-20/40/80/160 MHz - up to 2402 Mbps;
- 2.4GHz : 802.11b/g/n/ax-20MHz up to 286.8 Mbps
- 6GHz : 802.11ax - 20/40/80/160 MHz - up to 2402 Mbps
Fast Roam : PMKID caching; Cisco CCKM; 802.11r; OKC
Operating Channels ;
- Channel 1-13 : (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13;
- Channel 36-165 : (5180-5825 MHz): 36,40, 44,48,52,56,60,64,100,104,108,112,116,120,124, 128, 132,136,140,144,149,153,157,161,165;
- Channel 1-233 : (5925-7125 MHz);
- Channel Bandwidth : 20/40/80/160 MHz;
- NOTE : Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Security and Encryption : WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) - EAP-TTLS (PAP, MSCHAP, MSCHAPv2); EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD); WWAN device only - EAP-SIM, EAP-AKA; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS; Enhanced Open (OWE)
Certifications ;
- Wi-Fi Alliance Certifications : Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6; Wi-Fi CERTIFIED 6E; Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; QoS Management; OCE
WIRELESS WAN DATA VOICE COMMUNICATIONS (TC58e)
GPS : GPS, GLONASS, Galileo, Beidou, QZSS Dual-Band GNSS - concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports IZAT™ XTRA
Multimedia : Wi-Fi Multimedia™ (WMM) and WMM-PS; TSPEC
Radio Frequency Band2 ;
✔ North America ;
- 5G FR1: n2/5/7/12/13/14/25/26/29/30/38/41/48/66/71/77/78;
- 4G : B2/4/5/7/12/13/14/17/25/26/29/30/38/41/48/66/71;
- 3G : B2/4/5;
✔ Rest of World ;
- 5G FR1: n1/2/3/5/7/8/12/20/26/28/38/40/41/66/71/77/78;
- 4G : B1/2/3/4/5/7/8/12/17/18/20/26/28/38/39/40/41/42/43/66/71;
- 3G : 1/2/4/5/8;
- 2G : 850/900/1800/1900;
✔ China/Japan ;
- 5G FR1: n1/3/5/7/8/28/38/40/41/77/78/79;
- 4G: B1/3/5/7/8/28/34/38/39/40/41/42;
- 3G: B1/5
✔ Supports private networking (LTE/5G)
ENVIRONMENTAL COMPLIANCE
RoHS Directive 2011/65/EU; RoHS Amendment (EU) 2015/863; (EN IEC 63000:2018 Standard); For a complete list of product and materials compliance, please visit
www.zebra.com/environment
WARRANTY
Subject to the terms of Zebra’s hardware warranty statement, the TC53e, TC53e-RFID and TC58e are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:
www.zebra.com/warranty
RECOMMENDED SERVICES
Zebra OneCare™ Essential and Select support services; Zebra Visibility Services - VisibilityIQ™ Foresight; For information on Zebra services, please visit www.zebra.com/services
FOOTNOTES
1. Compared to prior generation TC5 Series devices: TC51/TC56; TC52/TC57; TC52x/TC57x/TC52ax; Specifications subject to change without notice.
2. Actual band support may vary by country or carrier, contact Zebra Tech Support for more details.
3. TC58e: EPEAT Gold Certified
